204C 12-30 HDPE N-12 Compression (Cast-in) Structure Connection with PVC Adapter Detail

Filename:
204C 12-30 HDPE N-12 Compression (Cast-in) Structure Connection with PVC Adapter Detail.dwg

Download Document (dwg)
204C 12-30 HDPE N-12 Compression (Cast-in) Structure Connection with PVC Adapter Detail

This document is the 204C 12-30 HDPE N-12 Compression (Cast-in) Structure Connection with PVC Adapter Detail. A detail, chart and notes provided.

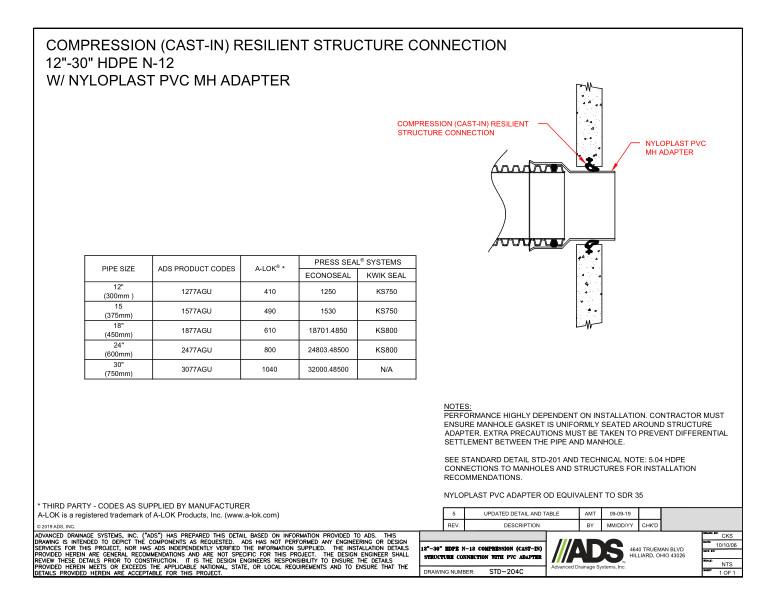

The detail shows the compression (cast-in) resilient structure connection and the nyloplast PVC MH adapter.

A chart with values pipe size, ADS product codes, A-LOK, and press seal systems of econoseal and kwik seal is shown.

Notes recommend performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter. Nyloplast PVC adapter OD equivalent to SDR 35.
