60" x 12" - 60" x 24" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings)
Filename:
60" x 12" - 60" x 24" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings).pdf

This document is the 60" x 12" - 60" x 24" Fabricated Reducing Tees (HDPE Dual Wall Fabricated Tees Fittings). Diagrams with table provided.

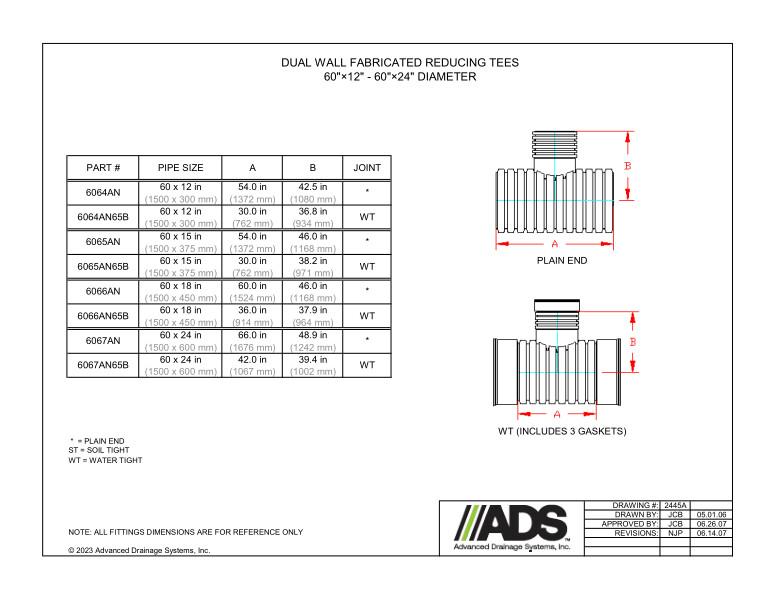

The dual wall Fabricated Reducing Tees 60" x 12" - 60" x 24" diameter is shown in a Plain End diagram with A/B dimensions and a WT (includes 3 gaskets) Tee that shows A/B dimensions.
A table with the information for part number, pipe size and A/B/Joint sizes is provided.
All fittings dimensions are for reference only.
