12" AdvanEdge Wye (AdvanEdge Fittings)

Filename:
12" AdvanEdge Wye (AdvanEdge Fittings).pdf

Download Document (pdf) View in Browser

This document is the 12” AdvanEdge Wye (AdvanEdge Fittings). Diagram with table provided.

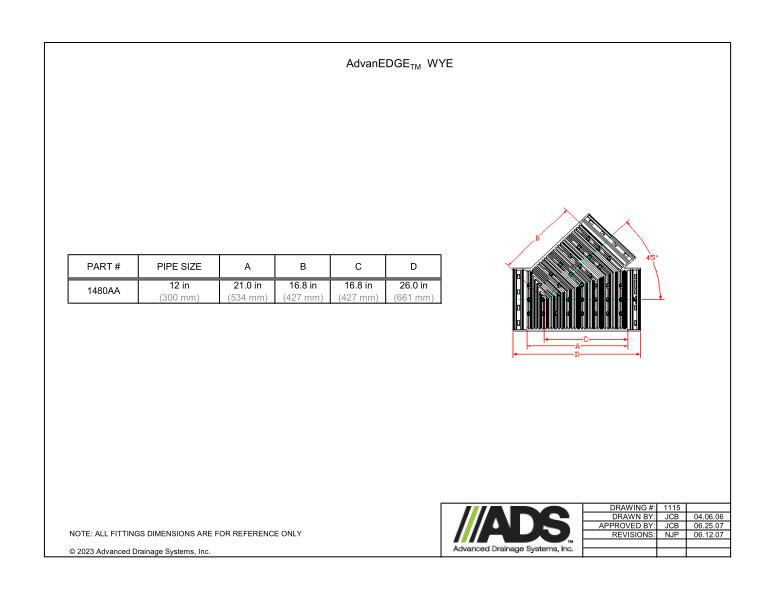

The AdvanEDGE WYE diagram shows the A/B/C/D dimensions with a 45 degree arc.

The table provides the values for Part number, pipe size and A/B/C/D dimensions.

All fittings dimensions are for reference only.
